Terex TSV
Terex TSV 8′ x 20′ 3-Deck Horizontal Screen
The Cedarapids TSV series screens take the legendary val stroke screen to the next generation of product. These TSV series screens are built stronger, run smoother, handle more applications, and have longer life than older or copycat oval stroke screens in the market today.
Location: Honey Brook
Availability: Immediate
Designed for Long Life
- More steel in “rock zone” for industry leading durability; 5/16” (8 mm) Grade 50 side plates are 2-times stronger than 1/4” (6 mm) standard steel; rugged computer-optimized decks with full-length bracing are unmatched
- Patented gear case baffled lubrication system along with high tolerance machined eccentric weights provide smooth running and long bearing life

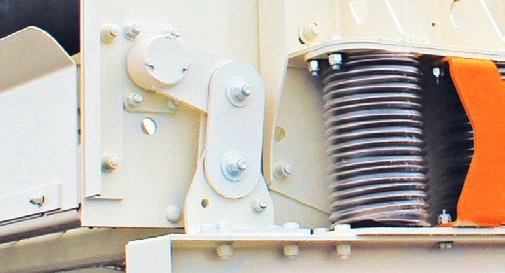

- Longer HD suspension springs handle heavier loads and improve isolation to protect the screen and support structure from shock and vibration
- Patented Dual O-Ring Huck Bolt construction is “sealed for life” requiring no re-tightening or maintenance
More Production
- Enhanced Action on the Feed end provides improved screening in the heavy load zone
- Variable slope installation from zero to 10 degrees allows matching the slope to the application to minimize bed depth as well as larger screen openings up to 6”
- High G-force, high efficiency oval stroke motion adjusts 3-ways (speed, stroke angle, stroke magnitude) to optimize performance
- Patented optional bottom deck deflector plates boost screen efficiency by up to 12%
- Medium scalper option increases feed size from 10” to 14” (254 to 355 mm); option includes side liners/with 6” side extensions to contain larger stones
- High Speed Variable slope (HSV) option increases operating speed up to 1000 rpm with reduced stroke compared to standard screen
Reduced Cost of Ownership
- Maintenance-friendly features include the patented low maintenance surge damper system; bolt-on upper and lower spring guides; “tool-less” oil check sight glasses; sidewall hand access system for wire cloth clamp bars; bottom deck feed curtain; optional magnetic deck wear liners, optional “TOPS 2.0” oil filtering system.
- Patented “flow-through” lubrication system and patented “sealed-for-life” double O-ring construction provides maximum equipment life
